Tuomas Jomppanen

How I architect users and organisations in Ruby on Rails applications

04 Feb 2020

This is a blog post goes through some of the best practices that I have found out over the years when I have been building SaaS’ish web applications.

I use Devise as my authentication library. I consider it the de facto authentication solution, at least until Ruby on Rails introduces an authentication solution that is built into Ruby on Rails.

I have been thinking about this subject for months, but this tweet by Ben Orenstein was the final push to get me into writing mode.

“Has anyone written something great about how to model your Rails-based SaaS app with Users, Teams, Organizations, and Subscriptions so that you don’t regret it later?”

A link to the original tweet

Users and Organizations

The Organization is a model that is at the core of everything. Every User will be a member of an organization through an association called Membership.

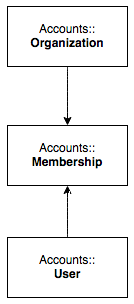

ER Diagram

When a user is created by Devise, it creates an organization and membership and associates all of these three together.

The day will come when you need to associate your users in organizations and it will be the refactor from your worst nightmares. You will be better off by just associating organizations and users from the beginnings of your project.

Base Controllers

I like to use two different controllers for guest users and logged in users, ApplicationController is used for users who are not signed in and SignedInApplicationController is used when I want to restrict the controller only for users who are currently signed in.

ApplicationController is as plain as possible.

# app/controller/application_controller.rb

class ApplicationController < ActionController::Base

    def after_sign_in_path_for(user)

SignedInApplicationController has a larger set of responsibilities. It exposes two helper-methods, current_user is a Devise method and current_organization is defined here. It also forces to use a specific layout for signed-in users.

# app/controller/signed_in_application_controller.rb

class SignedInApplicationController < ActionController::Base
  before_action :authenticate_user!
  layout "signed_in_application"
  helper_method :current_organization
  helper_method :current_user


    def current_organization
      @current_organization ||= current_user.organization

Namespacing models and controllers

I like to put models and controllers into namespaces when if they share similar responsibilities. Authentication and accounts prime candidates for namespacing and putting the files into subfolders.

As I mentioned, I am using Devise as go-to my authentication library. It works perfectly and does everything I need. I just override the create-method in registration controller, because I want to create Organization and Membership at the same time when User is created.

Directory structure



The connection between User and Organization uses a conditional scope that returns only active memberships. This is a safety mechanism built into has_many association method organizations to allow access only if membership is active.

# app/models/accounts/user.rb

class Accounts::User < ApplicationRecord
  devise :database_authenticatable, :registerable, :recoverable,
         :rememberable, :validatable, :confirmable, :trackable

  has_many :memberships
  has_many :organizations, -> {where(accounts_memberships: { status: 0})}, through: :memberships
  has_many :all_organizations, through: :memberships, source: :organization

  def organization
    # for now, just assume that user has membership with
    # only one organization

Creating an organization when user-record is created

There are a couple of ways to achieve this. I like to create the organization-model in the registrations controller.

The code here below is copied from my latest project. If you want to use this, please do not copy it from here. Instead, go to Devise repository , find the registrations_controller.rb file and copy it from there. The create_user_organization_and_membership method does not necessarily need to be in the controller. You can put it into a separate file and make it as a model or a service object, whatever feels right for you.

# app/controllers/authentication/registrations_controller.rb

class Authentication::RegistrationsController < Devise::RegistrationsController
  def create

    # here is where the user-model is created

    yield resource if block_given?
    if resource.persisted?
      if resource.active_for_authentication?
        set_flash_message! :notice, :signed_up
        sign_up(resource_name, resource)
        respond_with resource, location: after_sign_up_path_for(resource)
        set_flash_message! :notice, :"signed_up_but_#{resource.inactive_message}"
        respond_with resource, location: after_inactive_sign_up_path_for(resource)
       clean_up_passwords resource
       respond_with resource

     def after_inactive_sign_up_path_for(user)

     def create_user_organization_and_membership(user)
       return false unless user.valid?
       ActiveRecord::Base.transaction do
         organization = Accounts::Organization.create(status: "active", name: user.email, created_by: user.email)
         membership = Accounts::Membership.create(organization: organization, user: user, role: "owner")
     rescue ActiveRecord::RecordInvalid => e
       # would be good idea to log the error message

What about payments and subscriptions?

When thinking about responsibilities in this architecture, the responsibility of holding the information if somebody has paid or not belongs to Organization.

The Subscribeable concern has the logic to determine if an organization has a payment subscription or not. It also has the functionality to start and end a subscription.

In my case, it contains free-trial functionality and requires a subscription after the free trial ends. Requiring the credit card in the registration process is a bit tricky in the EU with strong-customer-authentication (SCA) regulation.

I like to put payments into their own namespace. All related code lives in payments namespace. Payment processor related code lives in their own directories, for example app/models/payments/processors/stripe_processor.rb

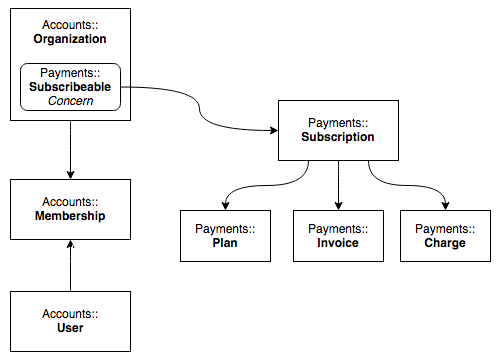

ER Diagram

Organization-class includes Subscribeable concern.

# app/models/accounts/organization.rb

class Accounts::Organization < ApplicationRecord
  include Payments::Subscribeable


Closing words

When creating something larger than “Hello World”, things get complicated quickly. The term “it depends” is used more and more. Any blog post written about software architecture can be read with a grain of salt. So pleas remember, this is just one way of architecting a SaaS user management.

If this approach feels a bit too limited for you, head over to FireHydrant blog and read this blog post by Bobby Tables.

I would greatly appreciate it if you kindly give me some feedback on blog post!

If you have ideas on how to handle the generic-part of the architecture of a SaaS, please send me an email or tweet at me. I’m always looking to improve my skills and knowledge!

Any kind of feedback is appreciated! My email is my first name at my first name dot io
